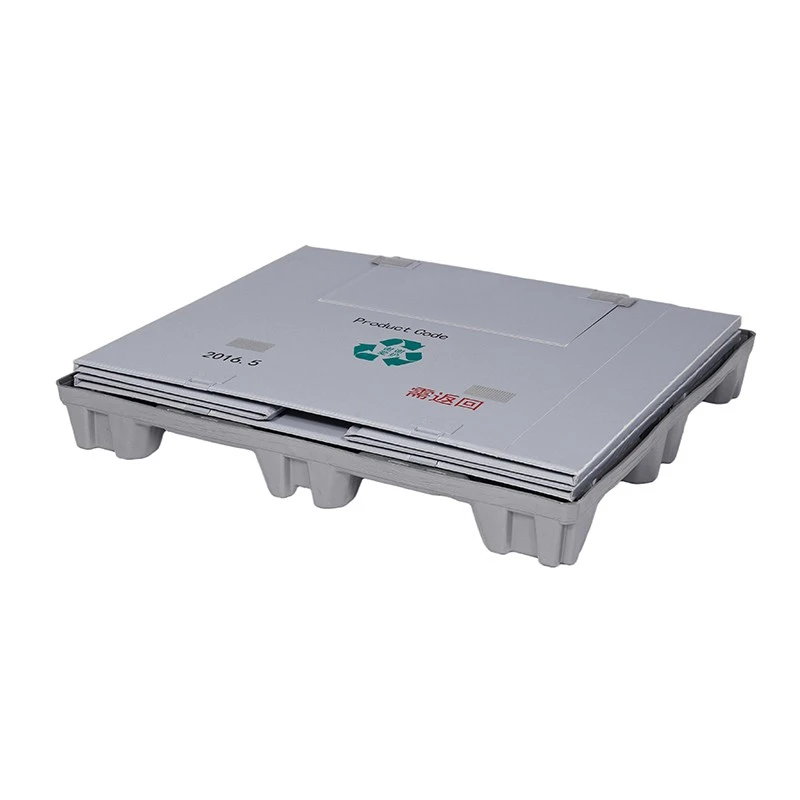

Pallet sleeve box is a collapsible, bulky box. It has a pallet base, an opening sleeve, and a top lid. It is made to transport and store large quantities of material with good space efficiency at a low price. For custom sizes, colours, or packaging requirements, contact us to discuss your project and request a quotation.

plastic-sleeve-box

Product Specification

Item	Specification
Product Name	Pallet Sleeve Box
Structure	3-piece set: Pallet + Sleeve + Lid
Outer Size (L × W × H)	1200 × 1000 × 1000 mm (height customizable)
Inner Size (L × W × H)	1140 × 940 × 860 mm
Collapsed Height	About 250mm
Volume Capacity	About 900 L
Set Weight	34 kg
Dynamic Load	500 kg per box
Static Load	Up to G+3 with 500 kg/box
Sleeve Material	PP honeycomb / triple-wall corrugated
Pallet & Lid Material	PP
Temperature Range	-20 °C to +60 °C
Access	4-way forklift and hand pallet truck entry
Sleeve Height	Fully customizable according to customer needs
Options	Drop doors, label holders, window opening, inner dividers, straps, and corner posts

Product Advantages

1. PP Honeycomb Triple-Wall Sleeve
The honeycomb core adds structural strength to the PP sleeve, improving resistance to compression and impact while keeping the sleeve relatively lightweight.

2. Anti-Slip Feet and 4-Way Access
The PP pallet base is designed with anti-slip feet for stable stacking and handling. Four-way forklift and hand pallet truck entry allows the assembled box to be moved easily in warehouse and logistics operations.

3. Collapsible Design and Return Efficiency
When empty, the sleeve can be folded down to a collapsed height of about 250 mm, compared with the standard 1000 mm assembled height. This reduces the space needed for empty storage and return transport.

PP side wall

Application Industries

Automotive and Machinery
These containers are suitable for handling metal parts, plastic components, assemblies, and CKD kits during production, storage, and line-side delivery.

Electronics and Appliances
They can be used for transporting and storing semi-finished and finished components. Internal dividers or inserts help separate individual items and reduce contact during handling.

Logistics and Warehousing
Reusable containers support repeated handling between warehouses, distribution centres, and production sites. The 4-way forklift and hand pallet truck entry also facilitates routine material movement.

Recycling and Circular Economy
The containers can serve as reusable collection units for returnable parts, reusable packaging, and other materials collected for sorting or further processing.

Shipping & Packaging

Container Loading Reference:

Approximately 65–70 sets of 1200 × 1000 mm sleeve boxes can be loaded into a 40HQ container, depending on the sleeve height, folding method, and final packing configuration.

Lead time:

Normally, 7-15 working days are needed after a deposit for standard sizes; customised heights or colours may require more time.

Logistics service:

Supports EXW pick-up, FOB at main ports, CIF at destination ports, and DDP at some countries through cooperative forwarders.

Customizable packaging for pallet boxes
